 PIR Sensor Based Security System using an Arduino in Tinkercad

In this project we are going to create a simple security system circuit with an Arduino and PIR motion sensor which can detect movement around it. An LED will light up when movement is detected and also buzzer will turn on.

We can use this project as security system in various places in home, ware houses PIR (“passive infrared”) sensors use to sense the motion. We can use PIR to detect whether a human has moved in or out of the sensor’s range. They are mainly found in appliances and gadgets used at home or for industries.

Introducing the PIR Motion Sensor:

The PIR motion sensor is used to detect movement in particular area. PIR stand for “Passive Infrared”. Basically, the PIR motion sensor measures infrared light which is coming from the objects within its field of range.

So, it can detect motion based on changes in infrared light in the environment which is coming from the human being.

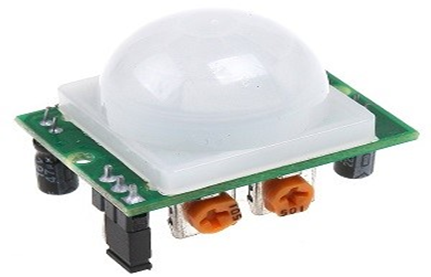

The sensor in the above picture has two settable potentiometers to regulate the delay time for that on the left side and for regulating   the sensitivity of PIR has potentiometer on the right side.





Inside the PIR sensor:



Backside of PIR Sensor:

Pinout:

PIR sensor has only 3 pins.

·       GND – connect to ground

·       OUT – connect to an Arduino digital pin

·       5V – connect to 5V







Circuit Diagram:



Connection:

·      VCC-of PIR conncted to the +5v of an Arduino.

·      GND-of PIR conncted to the GND of an Arduino.

·      OUT-of PIR connected to the pin 2 of an Arduino.

·      Postive pin of buzzer connected to pin 1 of an Anrduino.



Code Explanation (Block Based):

Belowpicture explains the coding block we have used, here we have used the conditional statement that is if block and comparison operator “=”.

Read the digital pin 2 checked whether its HIGH or LOW.

If the digital pin 2 is 1 that means HIGH then buzzer will on and off after sec ,which is connected to pin 1.



Arduino Sketch:

void setup()

{

  pinMode(2, INPUT);

  pinMode(1, OUTPUT);

}



void loop()

{

  if (digitalRead(2) == 1) {

    digitalWrite(1, HIGH);

    delay(1000); // Wait for 1000 millisecond(s)

    digitalWrite(1, LOW);

    delay(1000); // Wait for 1000 millisecond(s)

  }

}
